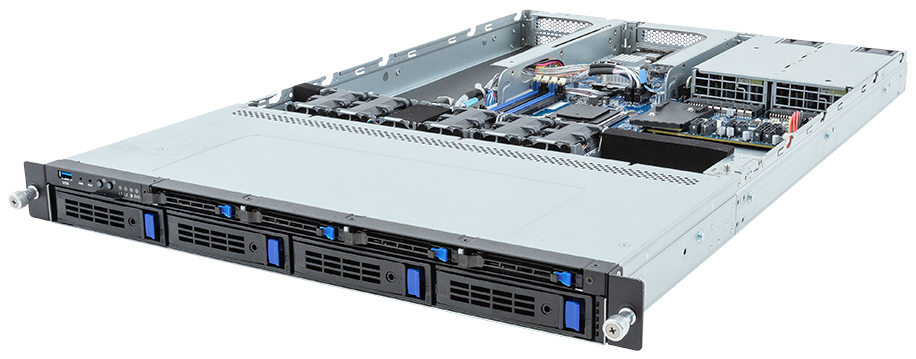

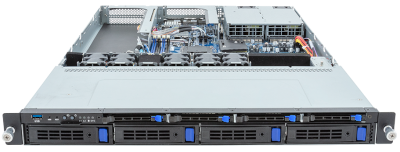

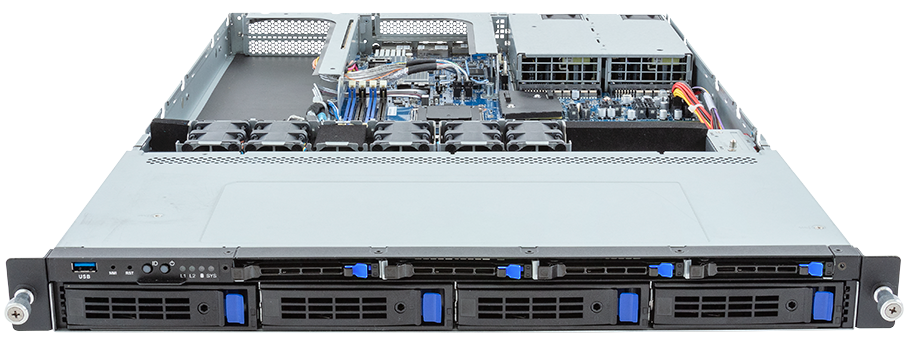

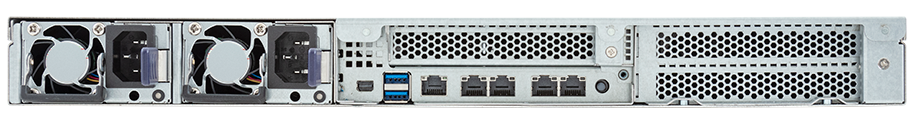

19
Zoll 1HE Single CPU
Server Expert-4
+ 4 | GPU
|
|

- Intel®
Xeon® 6300-Series/E-2400 Processors
- AMD EPYC™ 4005/4004 &
Ryzen™ 9000 Processors
- Dual Channel DDR5 ECC UDIMM, 4 x DIMM
- Intel®
Xeon® 6300-Series/E-2400 Processors:
- UDIMM: Up to 4400 MT/s (1DPC), 4000 MT/s
(2DPC/1R),
- 3600 MT/s (2DPC/2R)
- AMD EPYC™ 4005 /
Ryzen™ 9000:
UDIMM: Up to 5600 MT/s (1DPC), 3600 MT/s (2DPC)
AMD EPYC™ 4004:
UDIMM: Up to 5200 MT/s (1DPC), 3600 MT/s (2DPC)
Intel®
Xeon® 6300-Series/E-2400 Processors:
- 2 x 10Gb/s LAN ports via Intel®
X710-AT2
- 2 x 1Gb/s LAN ports via Intel®
I210-AT
AMD
EPYC™ 4005/4004 & Ryzen™ 9000 Processors:
- 2 x 10Gb/s LAN ports via Broadcom®
BCM57416
- 2 x 1Gb/s LAN ports via Broadcom®
BCM5720
- 4 x 3.5"/2.5" SATA hot-swap bays
- 4 x 2.5" 7mm SATA hot-swap bays
- 1 x M.2 slot with PCIe Gen4 x4 interface
- AMD
EPYC™ 4005/4004 & Ryzen™ 9000 Processors:
- 1 x FHFL PCIe Gen5 x16 slot for GPUs up to 300W
- 1 x FHHL PCIe Gen4 x4 slot
-
Intel®
Xeon® 6300-Series/E-2400 Processors:
- 1 x FHFL PCIe Gen5 x16 for GPUs up to 300W
- or 2 x FHFL PCIe Gen5 x8 slots for 2x GPUs up to 150W each
- 1 x FHHL PCIe Gen4 x4 slot
- 1+1 800W 80 PLUS Titanium redundant power
supplies
- Dimensions (WxHxD, mm) 438 x 43.5 x
710
|
|
|
